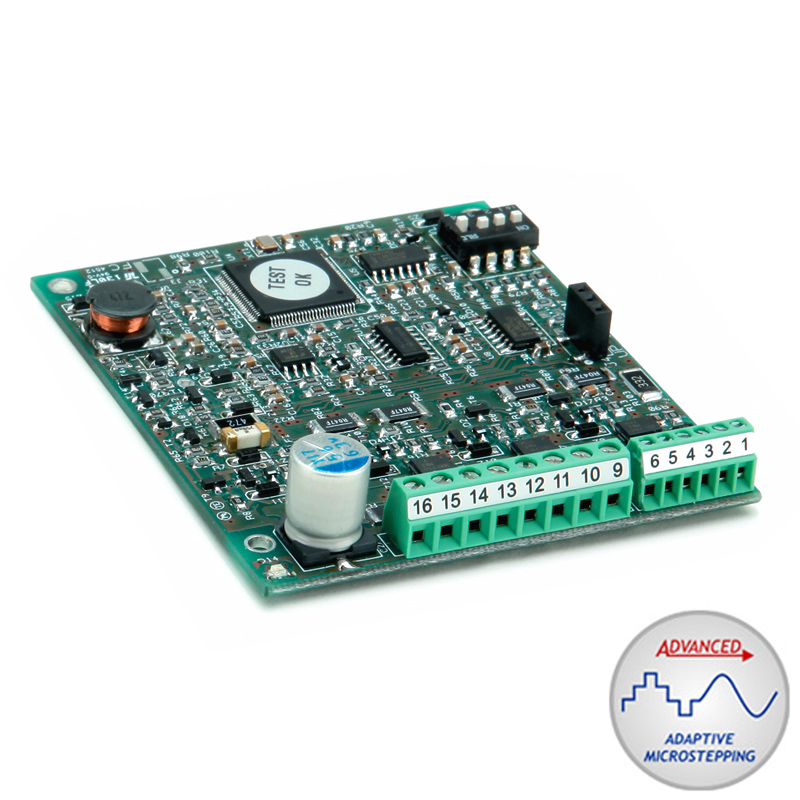

Open-frame Platine BSD 02.V ( ADVANCED )
( 24 - 48 VDC 0.7 - 2.2 Amp ) mit Schraubverbinder

PREIS
46.50 €
(ohne MwSt)

Einleitung

► New series of microstep stepping motor drives specifically developed for small and mid-size stepping motors.
► Ultra-compact and optimized design to reduce space and cost, combined with Adaptive Microstepping technology ensuring noise and vibration suppression.
► Target: simple and effective motion control solutions requiring low power, high precision, smoothness of movement and low acoustic noise.
► Ideal solution to replace integrated circuits and self-made, low power drives. The perfect choice for small routers, medical, 3D printers and all types of compact machines.

HIGHLIGHTS


► Full digital microstepping drive.
► Adaptive microstepping up to 3.200 step/rev.
► Intelligent management of the current profile that achieves good results in terms of smoothness of movement, low noise and vibration control.
► A highly sophisticated control system, preserving anyhow the traditional ease of use of R.T.A. drives.

Technische Daten

* Version: Open Frame Platine (78 x 68 x 21 mm) mit Schraubverbinder
* Versorgungsspannungsbereich: 24 - 48 VDC
* Strombereich: 0,7 - 2,2 A Einstellung von 4 Durchschnittswerten mittels Dip-Schalter
* Microstepping: 400, 800, 1.600 und 3.200 Impulse/Umdrehung, Einstellung mittels Dip-Schalter
* Verwaltung des einstellbaren Stromprofils mittels Dip-Schalter
* Automatischer Stromabfall bei stillstehendem Motor
* Schutzvorrichtungen:
- Unterspannungsschutz
- Kurzschluss-Schutz an den Motorausgängen
* Elektronische Dämpfung für die bestmögliche Lärm- und Vibrationskontrolle
* Adaptive Microstepping
* Garantie: 24 Monate


VORGESCHLAGENE MOTOREN / ENDSTUFENKOMBINATION
