► New series of bipolar microstep stepping motor drives, specifically developed for applications sensitive to acoustic noise and vibration.
► Significant evolution of the CSD series, preserving backward mechanical, electrical and applicative compatibility.
► Target: advanced applications requiring high precision, smoothness of movement and low acoustic noise.

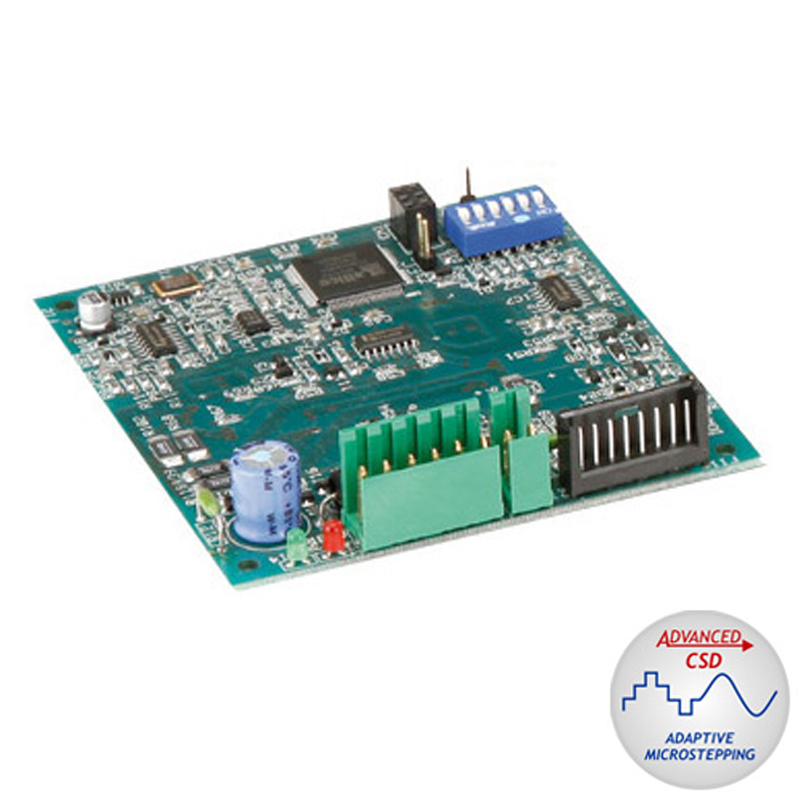

► Version: open frame drive in 92 x 85 x 23 mm, equipped with AMP connectors.
► Range of operating voltages: 24-48 VDC.
► Range of current: 2.6-4.4 Amp. Setting up to eight possible values by means of a dip-switch.
► Microstepping: 400, 800, 1.600 and 3.200 steps/revolution. Setting by means of dip-switches.
► Automatic current reduction at motor standstill.
► Management of the current profile setting by means of a dip-switch.
-Protection against under-voltage and over-voltage.
-Protection against a short-circuit at motor outputs.
-Overtemperature protection with thermal sensor.
► Electronic damping facility for further acoustic noise and mechanic vibrations reduction.
► Warranty: 24 months.
