► New series of bipolar microstep stepping motor drives, specifically developed for applications sensitive to acoustic noise and vibration.
► Significant evolution of the NDC series, preserving backward mechanical, electrical and applicative compatibility.
► Target: advanced applications requiring high precision, smoothness of movement and low acoustic noise.

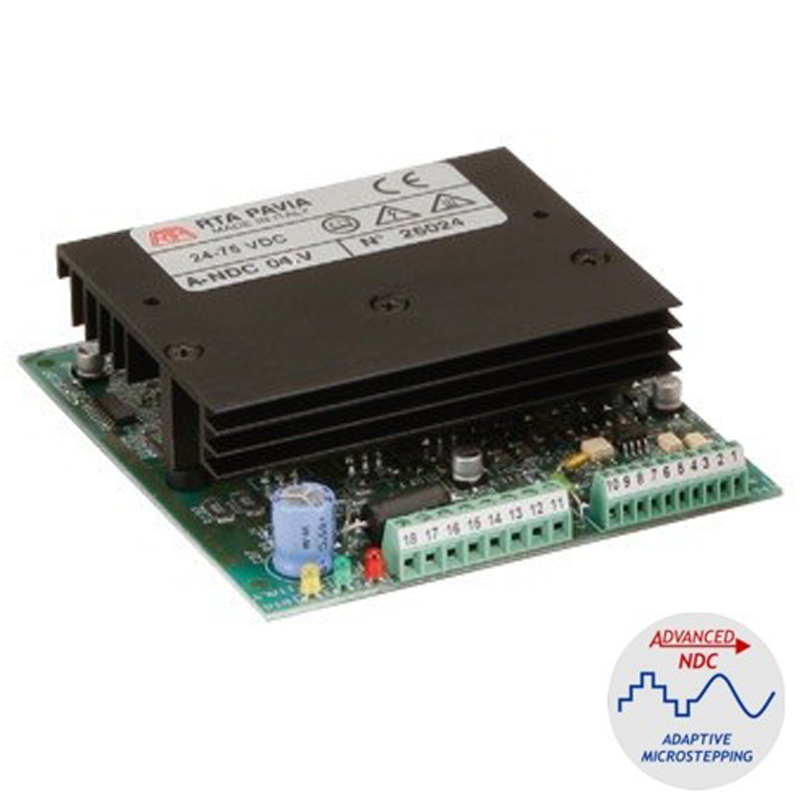

► Version: open frame drive in 101 x 94 x 25 mm, equipped with screw-type connectors.
► Range of operating voltages: 24-85 VDC.
► Range of current: 0.6-2.0 Amp. Setting up to eight possible values by means of a dip-switch.
► Microstepping: 400, 800, 1.600, 3.200, 6.400 and 12.800 steps/revolution. Setting by means of dip-switches.
► Automatic current reduction at motor standstill.
► Management of the current profile setting by means of a dip-switch.
-Protection against under-voltage and over-voltage.
-Protection against a short-circuit at motor outputs.
-Overtemperature protection with thermal sensor.
► Electronic damping facility for further acoustic noise and mechanic vibrations reduction.
► Optoinsulated inputs compatible to ensure best EM noise immunity.
► Warranty: 24 months.
VORGESCHLAGENE MOTOREN / ENDSTUFENKOMBINATION
