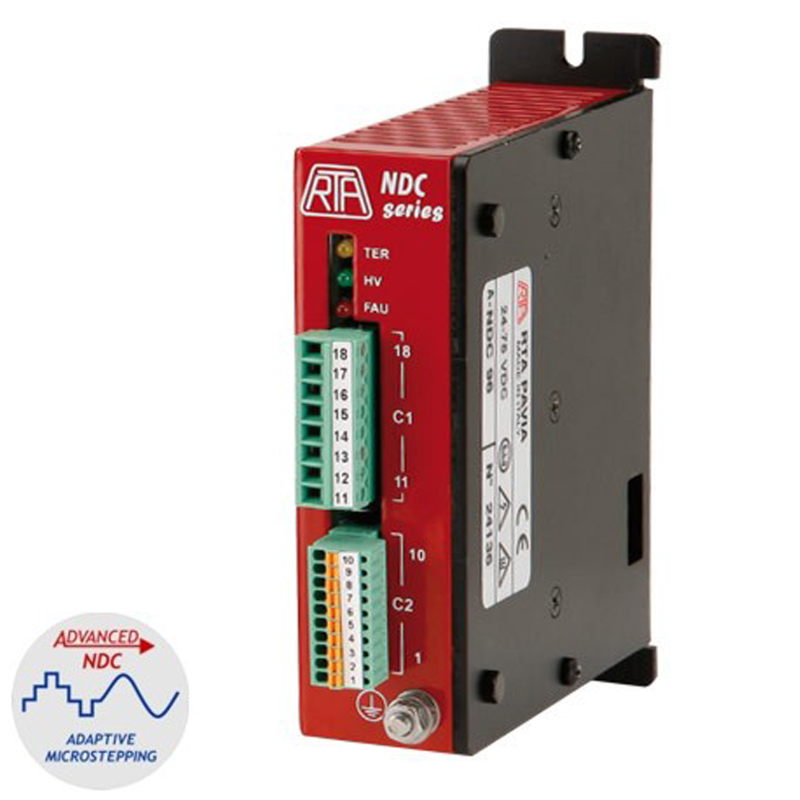

Platine in metallgehäuse A-NDC 94 ( ADVANCED )
( 24 - 85 VDC 0.6 - 2.0 Amp ) mit Abziehbaren Schraubverbindern


► New series of bipolar microstep stepping motor drives, specifically developed for applications sensitive to acoustic noise and vibration.
► Significant evolution of the NDC series, preserving backward mechanical, electrical and applicative compatibility.
► Target: advanced applications requiring high precision, smoothness of movement and low acoustic noise.


► Full digital microstepping drive.
► Adaptive microstepping up to 12.800 step/rev (1/64).
► Intelligent management of the current profile that achieves good results in terms of smoothness of movement, low noise and vibration control.
► A highly sophisticated control system, preserving anyhow the traditional ease of use of R.T.A. drives.
►UL Recognized

Technische Daten

► Version: drive housed in a metallic box in 110 x 108 x 34 mm, equipped with plug-in connectors.
► Range of operating voltages: 24-85 VDC.
► Range of current: 0.6 -2 Amps. Setting up to eight possible values by means of a dip-switch.
► Microstepping: 400, 800, 1.600, 3.200, 6.400 and 12.800 steps/revolution. Setting by means of a dip- switch.
► Management of the current profile setting by means of a dip-switch.
► Automatic current reduction at motor standstill.
► Protections:
-Protection against under-voltage and over-voltage.
-Protection against a short-circuit at motor outputs.
-Overtemperature protection with thermal sensor.
► Electronic damping facility for further acoustic noise and mechanic vibrations reduction.
► Optoinsulated inputs to ensure best EM noise immunity.
► Warranty: 24 months.
