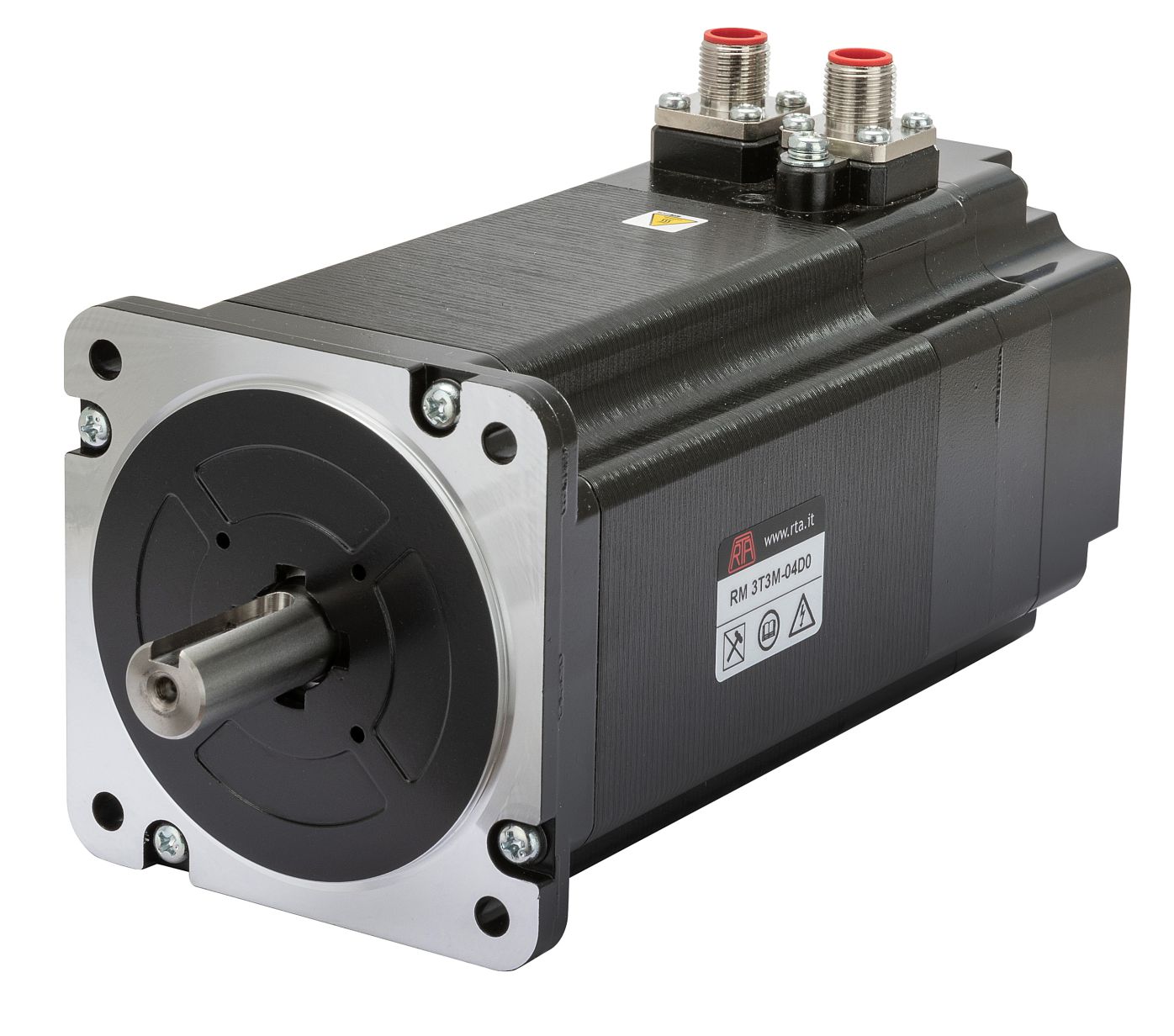

SCHRITTMOTOREN MIT ENCODER RM 3T3M-0XX0

Einleitung

Der Motor RM 3T3M-0XX0 ist mit drei verschiedenen Encoder-Versionen erhältlich, mit 400 cpr und 4000 cpr Auflösung, mit oder ohne Index.
Gekennzeichnet durch die Flanschgröße 86 mm und das Haltemoment von 920 Ncm, kann er mit folgenden R.T.A. Endstufen kombiniert werden: 230 VAC X-PLUS and X-MIND series.

-Protection degree: IP54.
-M12 connector on the motor for easy wiring.
-High performance in terms of torque and power with compact size.
-Coupling to drives with power supply directly from the main.
-Class F insulation.
-CE, UL and CSA marking.

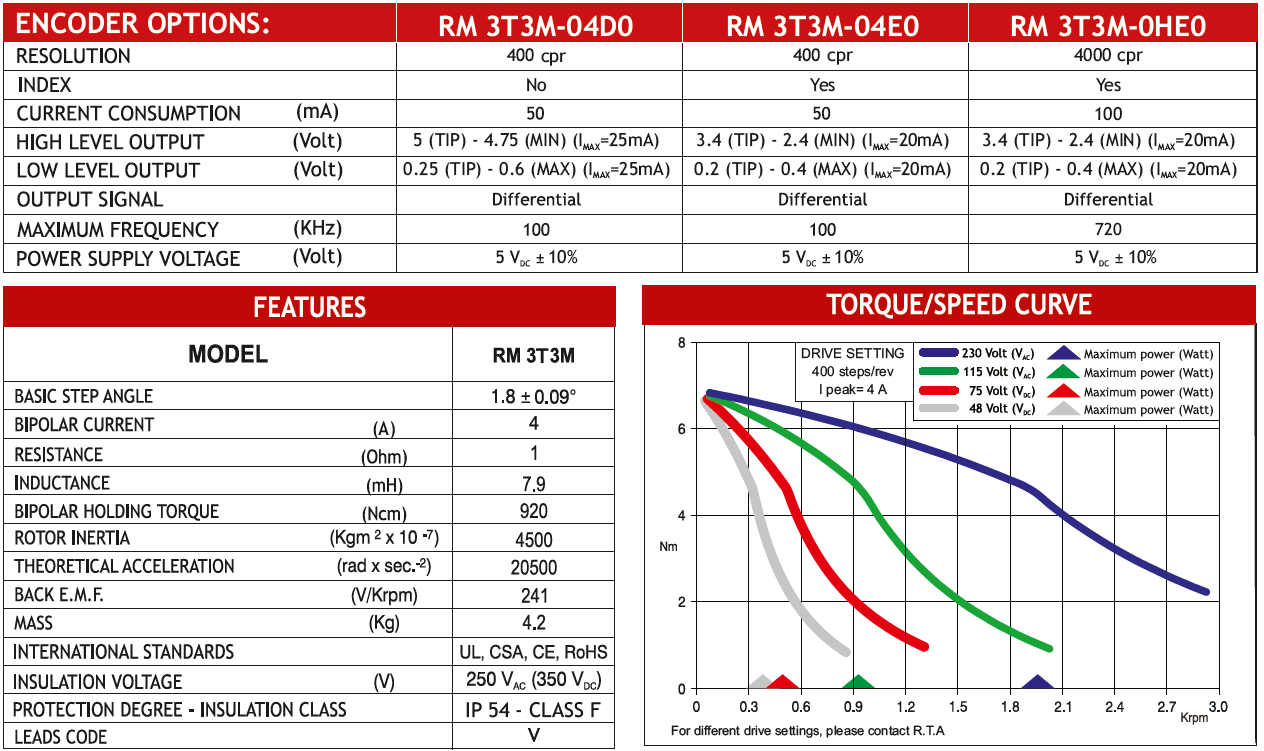

Technische Daten
