► Series of ministep bipolar chopper drives with an on-board programmable motion controller that can be used:
- for the interfacing, through RS485 serial line, with a central control system
- as an independent unit.
► Presence of a dedicated analog input for the setting of motor target speed.
► Target: low-power applications needing a programmable motion controller with small size motors.

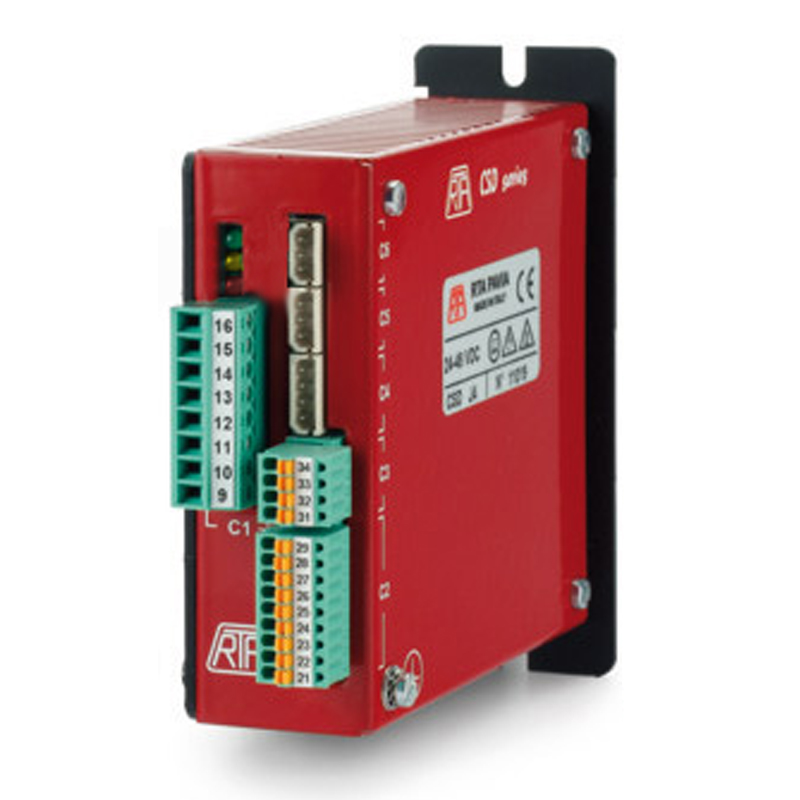

► Version: drive housed in a metallic box 90 x 99 x 30 mm, equipped with plug-in connectors.
► Range of operating voltages: 24-48 VDC.
► Range of current: 1.2-2.1 Amp Setting up to four possible values by means of a serial line.
► Microstepping: 400, 800, 1.600, 3.200 and 500, 1.000, 2.000, 4.000 steps/revolution. Setting by means of a serial line.
► Automatic current reduction at motor standstill.
-Protection against under-voltage and over-voltage.
-Protection against a short-circuit at motor outputs.
-Overtemperature protection with thermal sensor.
► Electronic damping facility for further acoustic noise and mechanic vibrations reduction.
► Possibility to set Pull-UP or Pull-Down inputs.
► Warranty: 24 months.
► Target speed setting by means of analog input sampled at the beginning of the motion sequence (before motor starts running).
► Input setting: 0-5 VDC or 0-10 VDC
► Frequency range:
- 3000 Hz- 48000 Hz (with ramp)
- 0 Hz-4100 Hz or 0 Hz-510 Hz (without ramp)
► Possibility of matching with potentiometers of 2.2 KOhm.
► Communication through RS485 serial line; up to 48 drives can be connected on a single serial line. One instruction can be broadcasted to all drives.
► Various types of available instructions, as for example: indexed run with ramp, free run with ramp, indexed run without ramp, run with a programmable braking distance, zero research. Space can be programmed in relative or absolute mode (linear or circular).
► Number of steps for indexed ramp up to ± 8.338.607 in relative or absolute mode, speed from 1 to 24.000 Hz in standard resolution and from 1 to 48.000 Hz in high resolution, ramp times from 16 to 1440 msec.
► Availability of instructions to develop motion programs as, for example: conditional jump, time delay, program block and recovery, I/O management, FOR NEXT loop.
► Possibility to control the execution of 8 previously stored motion programs through hardware inputs. Accordingly, the drive can be used in stand-alone applications, without serial connection.
► 8 inputs and 3 outputs, all optically insulated. Among them 1 input and 1 output are freely programmable.
► Memory of 128 instructions kept also at drive switched-off and three run time instructions.
► A utility working in Windows® is available in order to ease motion programs development by the user.
