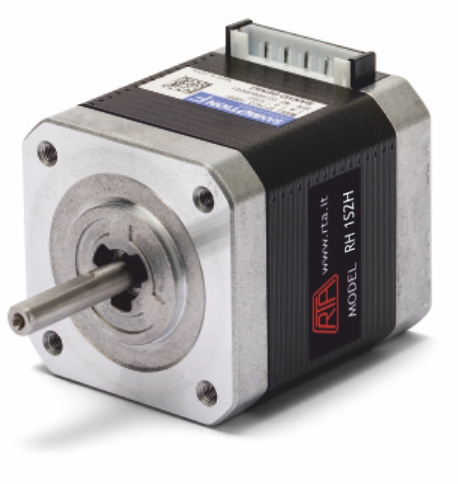

SCHRITTMOTOREN MIT ENCODR RH 1S2H-0XX0

Einleitung

RH 1S2H-0XX0 encoder motor is available with three different encoder versions, with 400 cpr and 4000 cpr resolution, with or without index.
Equipped with JST connector, it offers high torque with low vibrations and heating.
Characterized by flange size 42 mm. ( NEMA 17 ) and holding torque up to 56 Ncm, it can be coupled with the following R.T.A. drives: BSD series, CSD/CSDJ series/ A-CSD series, FLEX-DRIVE series.

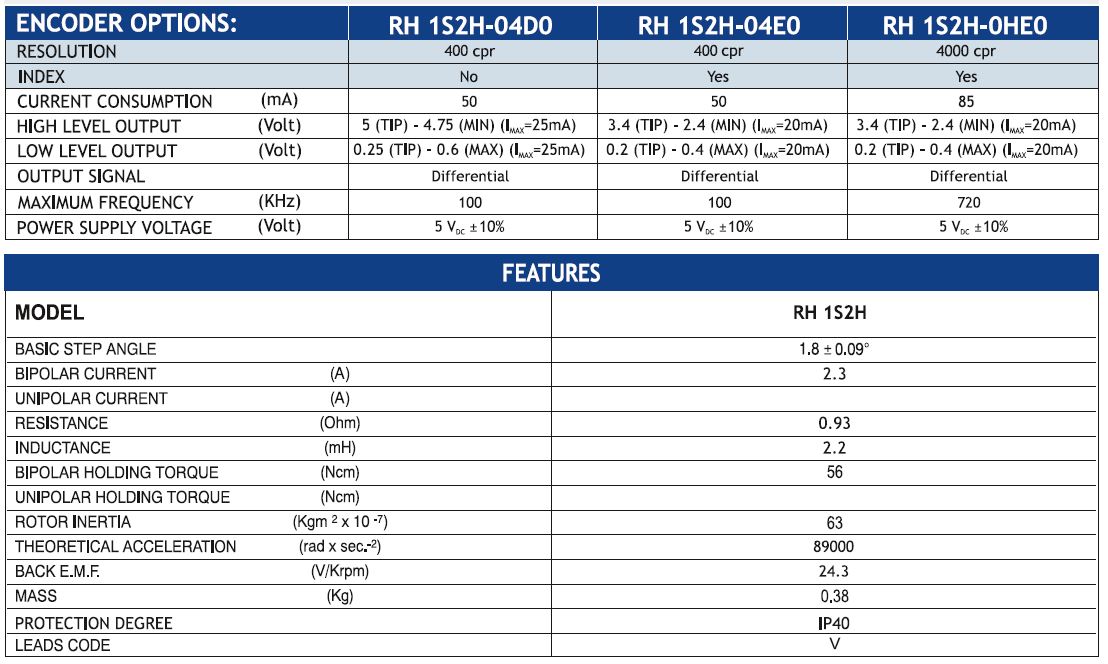

Technische Daten
